How do I dismount Beolab 8 from its stand or bracket?

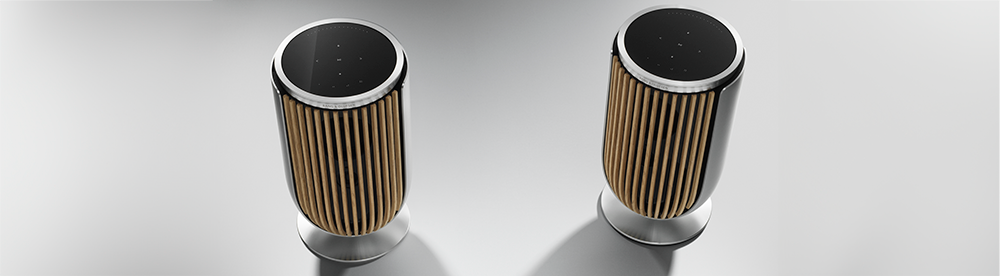

beolab 8 banner.png

Follow the steps below to dismount Beolab 8 from the stand or bracket.



  • Start by removing the magnetic covers on the back of the speaker.
  • Ensure that all aluminium surfaces are protected to avoid scratching the speaker or stand/bracket while dismounting.
  • If the speaker is mounted on a wall bracket, ensure that the speaker is tilted downwards before dismounting in order to protect the back of the speaker.

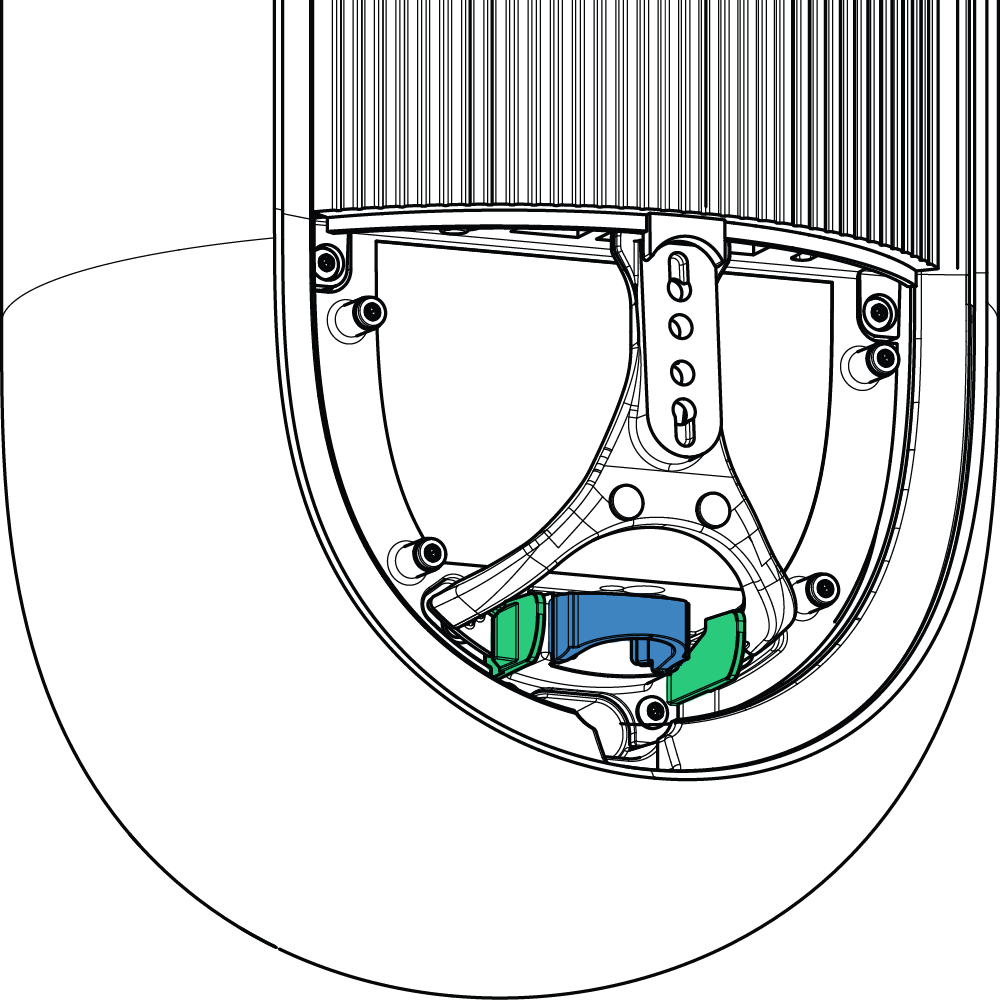

  • Remove the cable holder (marked blue) by pressing on both sides of it.
  • Remove all cables.
  • Press the two clips (marked green) together, while gently pulling and lifting the speaker from the bottom.
  • The speaker can now be lifted off the wishbone construction on the stand or bracket.*
dismount BL8.png

*The wishbone construction is included in the speaker packaging.
