The indicator light for Beoplay Eleven when charging via USB-C or Qi-charging pad is described in the table below:

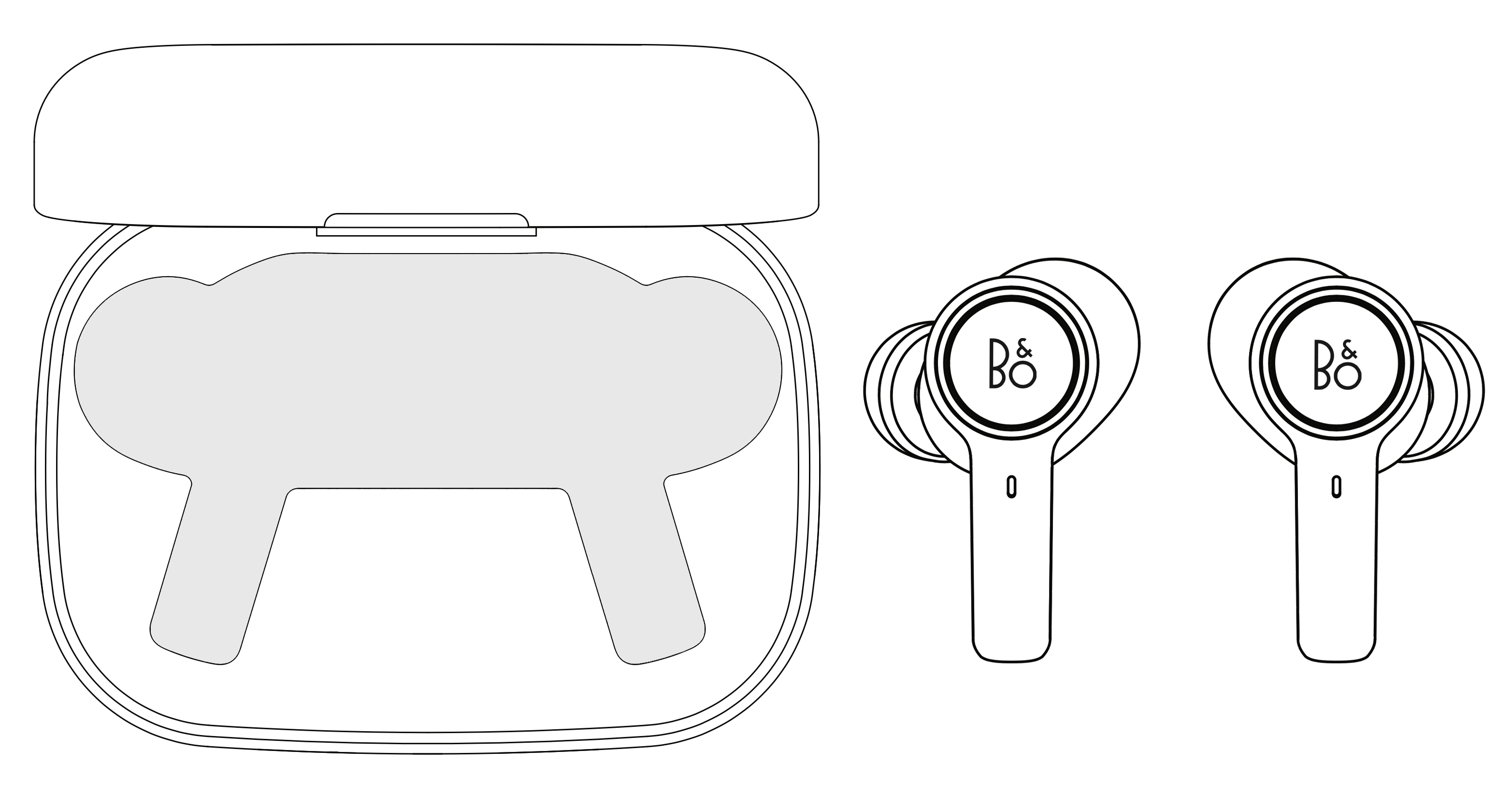

Charging indicator without earphones in the charging case | |
| Amber (pulsing) | Charging case charging |
| Green (solid) | Charging case fully charged |

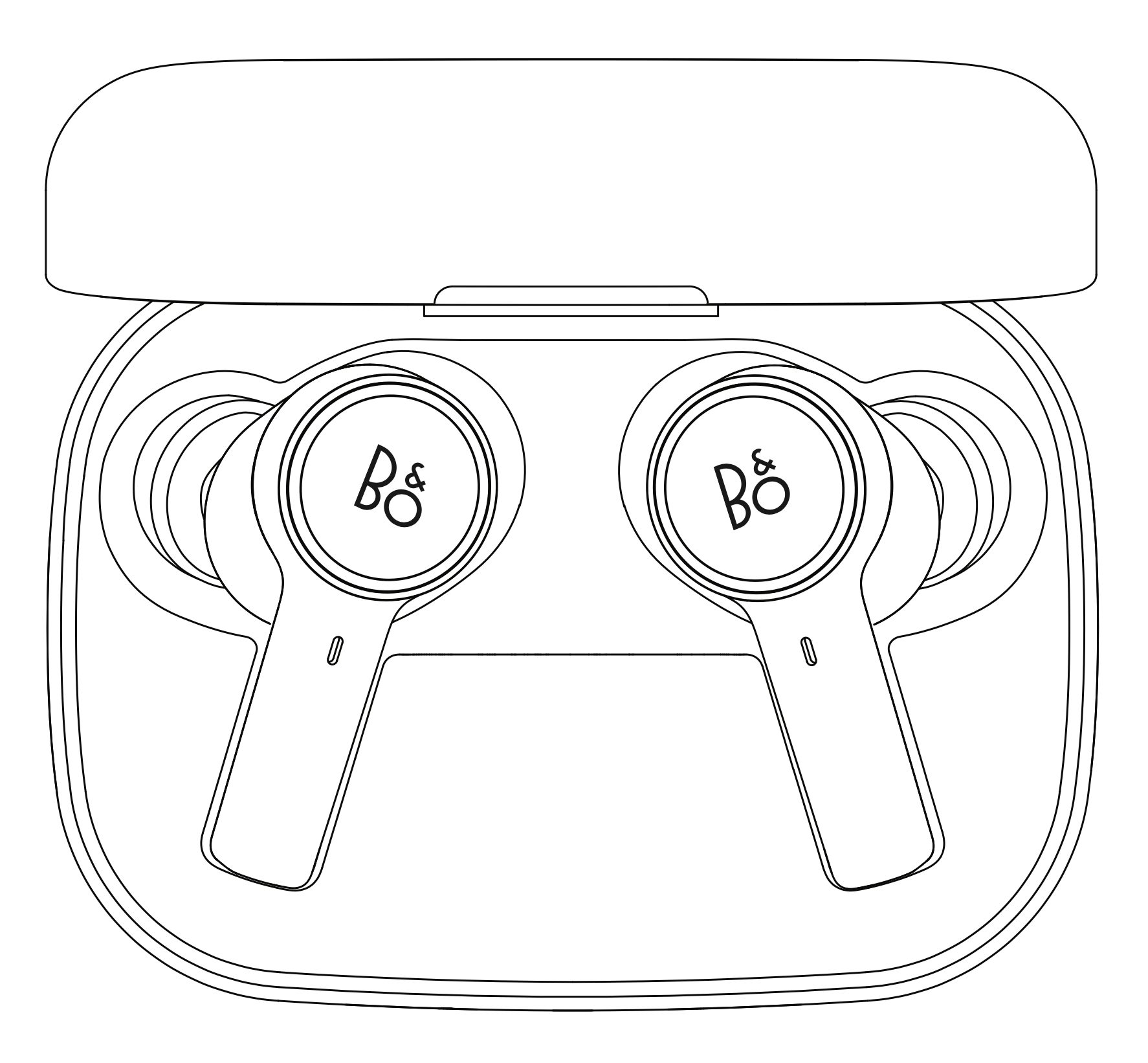

Charging indicator with earphones stored in the charging case | |
| Amber (pulsing) | Charging case and earphones charging |
| Green (solid) | Charging case and earphones fully charged |
The light indicator when not charging Beoplay Eleven is described in the table below:
Earphones in charging case | |
| Amber (pulsing quickly) | Initiating factory reset |
| Amber (solid) | Factory reset in progress |
| White (double pulsing) | Bluetooth pairing mode |
| White (solid, 3 seconds) | Bluetooth pairing successful |
| Red (solid, 3 seconds) | Bluetooth pairing failed |
| Green (pulsing slowly) | Software update in progress. Switches off when update is complete. |
Open charging case or place earphones in charging case | |
| White (solid, 3 seconds) | Charging case battery above 50%. Earphones not charging or not in charging case. |
| White (pulsing slowly, 4 seconds) | Charging case battery above 50%. Earphones charging. |
| Amber (solid, 3 seconds) | Charging case battery 20-49%. Earphones not charging or not in charging case. |
| Amber (pulsing slowly, 4 seconds) | Charging case battery 20-49%. Earphones charging. |
| Red (solid, 3 seconds) | Charging case battery below 20%. Earphones not charging or not in charging case. |
| Red (pulsing slowly, 4 seconds) | Charging case battery below 20%. Earphones charging. |
| Off | Charging case battery depleted |
