Beosound Level - battery replacement

Rechargeable batteries are consumable components that chemically age and become less effective over time, and the capacity of any type of battery will diminish after a certain number of charges.

This product has been designed for a simple battery replacement process.

Please note that replacement of parts requires a certain knowledge of the use of tools as well as caution to avoid damaging the product.
If you have questions regarding the procedure, please contact your nearest Bang & Olufsen retailer or our Customer Care for assistance.

Bang & Olufsen cannot be held responsible for any damage induced during the procedure.

Tools required

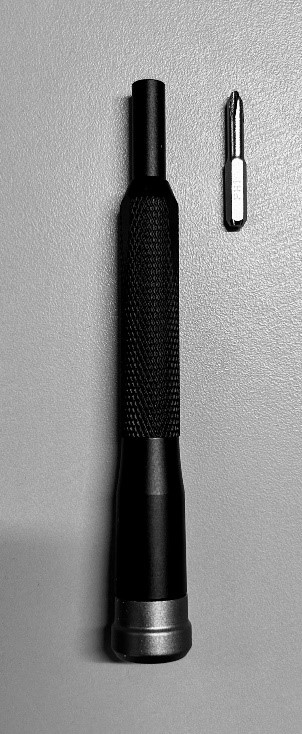

1 screwdriver, PH1 (3x12 mm)

Instructions

See video with all steps below:

1. Switch off Beosound Level
2. Carefully remove the front cover
3. Remove 12 screws (3x12 mm) using PH1 screwdriver
4. Remove battery cover
5. Carefully pull out the battery

After replacing the battery:

1. It is important to visually inspect all affected sealings and replace them if damaged.
2. Set Beosound Level in storage mode by pressing and holding the power button for 8 seconds.
