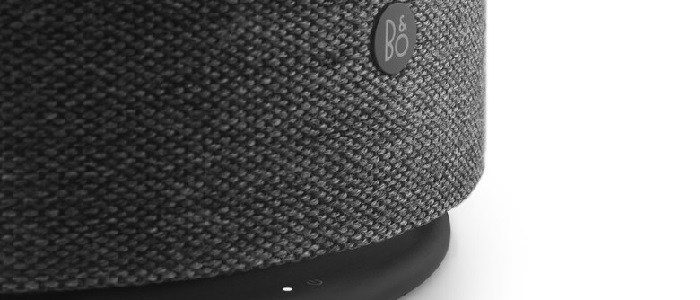

Beoplay M5 has two light indicators which are used for multiple functions:
|
Connectivity indicator (left) |
|
| White (dimmed) | In standby |
| White (flashing) | Booting up |
| White (solid) | Connected to Wi-Fi - signal level strong |
| Orange (solid) | Connected to Wi-Fi - signal level medium |
| Red (flashing) | Network connection error |
| Blue (flashing) | Bluetooth pairing mode |
| Blue (solid) | Bluetooth pairing is successful |
| Red (solid) | Bluetooth pairing is unsuccessful |
|
Product indicator (right) |
|
| Off | In standby or switched off |
| White (flashing) | Booting up |
| Red (solid) | Both indicators turn solid red shortly during factory reset |
| Red (flashing) | Both indicators flash red when a software update is in progress. |
| Red (flashing) | Firmware error. Disconnect from the mains supply and reconnect it |
| Blue (flashing) | Bluetooth pairing mode |
| Orange (flashing) | Overheating - allow time to cool down |
