How to assemble the Beosound Edge floor stand

The Beosound Edge floor stand is mounted as follows:

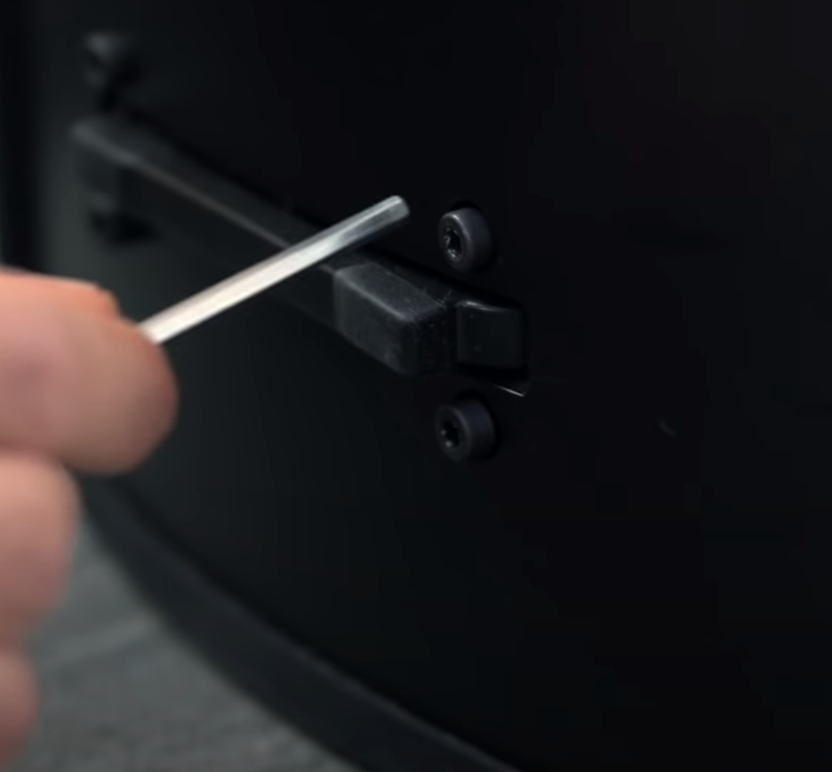

    1. mceclip0.png1

      Attach the bracket to the speaker

      • Place your speaker on something soft (like a rug) and screw the bracket onto the bottom of the speaker.
      • You will find a key and four screws in the packaging.

    2. Edgepow.jpg2

      Connect the power cable

      • Plug the power cable into the socket at the base of the speaker. Then, pull the rubber connector over to fill the gap.
      • Place the black rubber cover over the electronics well to conceal wires and cables.

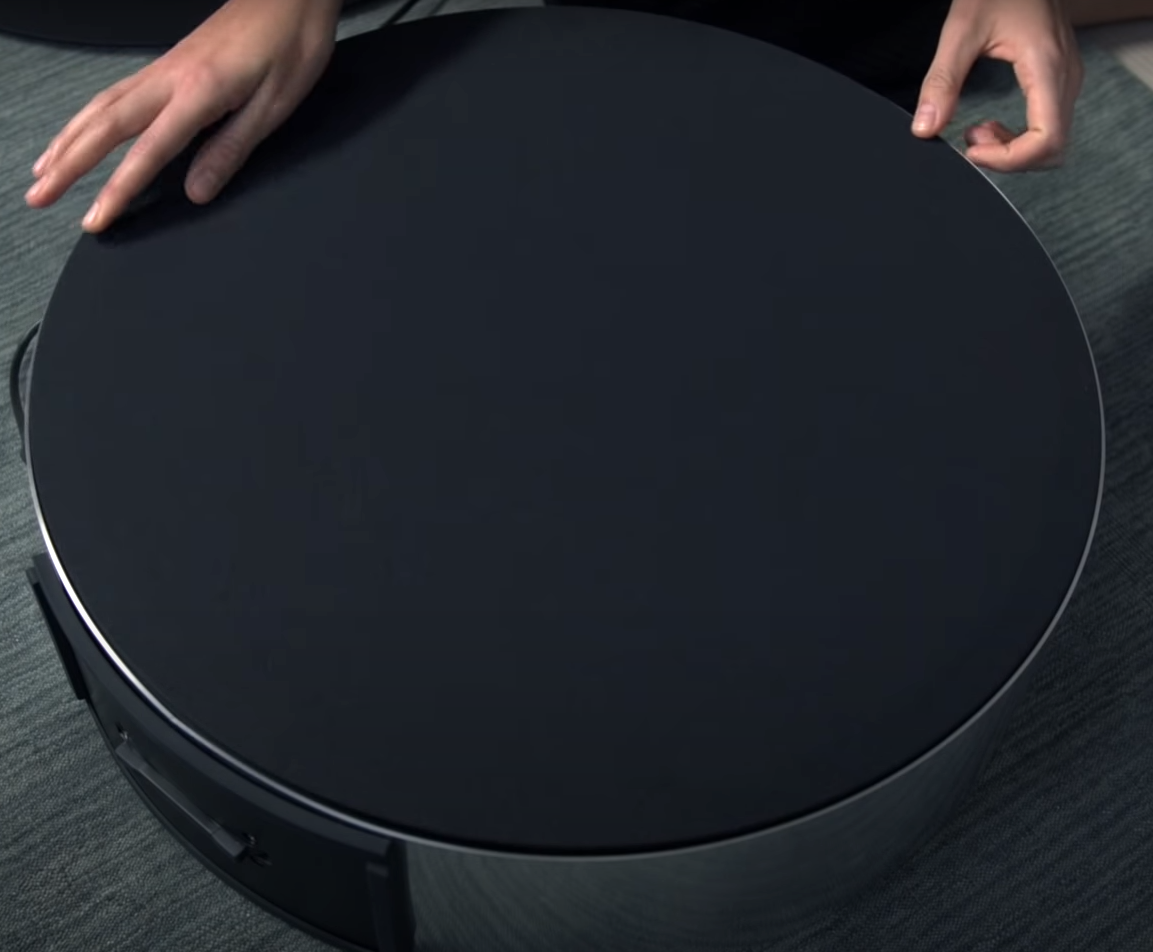

    3. mceclip1.png3

      Attach the fabric covers

      • Line one cover up with the speaker then press around the edges until you feel the knobs pop into place. Repeat on the other side.
      • Plug the power cable into a socket. Wait for the round light to switch from white to orange.
        This can take up to two minutes.

        NOTE: Click here for a video describing this process.

NEXT: Assemble your Beosound Edge wall bracket
