Setting up your Beosound Edge using the floor stand will provide a wider variety of positioning options and can be mounted as follows:
1

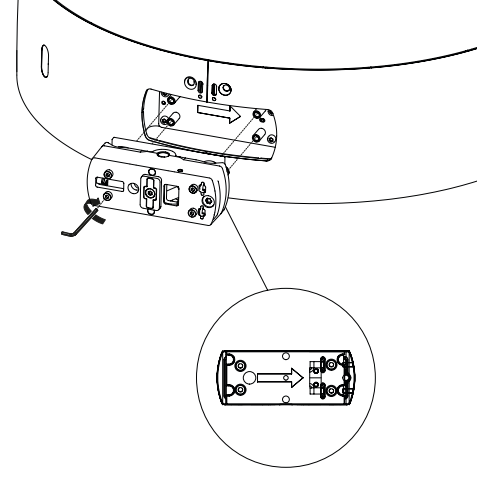

Attach the bracket support to the speaker
- Place your speaker on something soft (like a rug) and screw the bracket support to the bottom of the speaker.
- You'll find a key and four screws in the packaging.
2

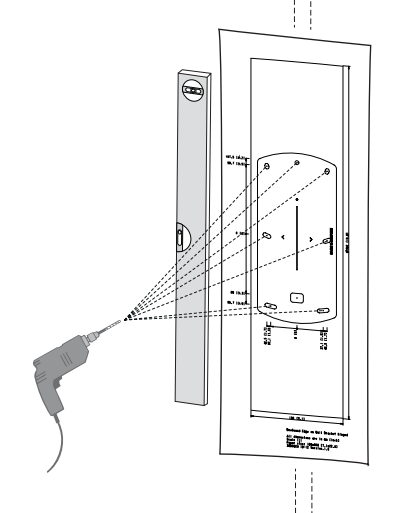

Screw the bracket to the wall
- Use the included screws to firmly place the wall bracket.
3

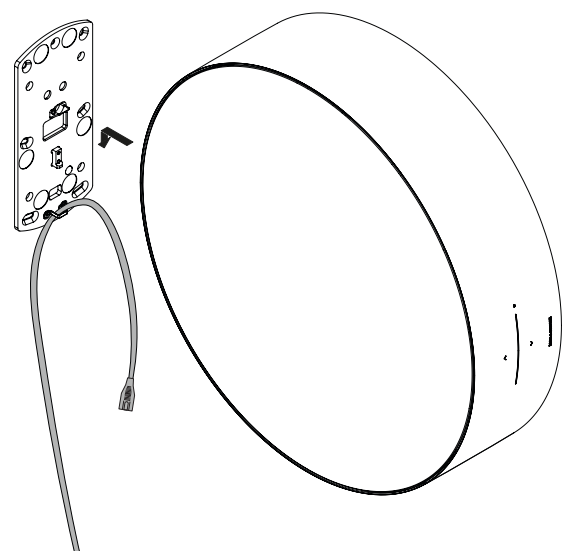

Mount the speaker
- Hang the power cable on the bracket for later use.
- Point the bottom of your speaker towards the wall bracket and push them together.
- Allow the speaker to gently rest on the wall mount.
4
Mount the speaker
- Hang the power cable on the bracket for later use.
- Point the bottom of your speaker towards the wall bracket and push them together.
- Allow the speaker to gently rest on the wall mount.

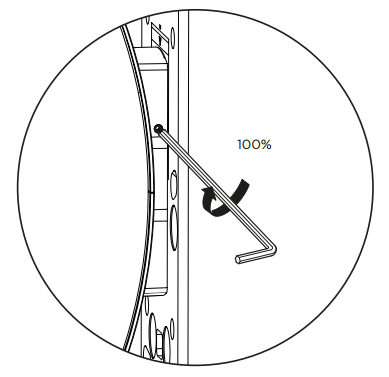

- Use the included screws to secure your Beosound Edge to the bracket.
5
Complete your set up
- Plug the power cable into the socket at the base of the speaker. Then, pull the rubber connector over to fill the gap.
- Place the black rubber cover over the electronics well, to conceal wires and cables.
- Line one cover up with the speaker then press around the edges until you feel the knobs pop into place. Repeat on the other side.
- Plug the power cable into a socket. Wait for the round light to switch from white to orange.
This can take up to two minutes. Your device is now ready to be set up.
NOTE: The user guide with more detailed steps can be found attached to this article.
