Light indicator


Status LED (on top of the product in the middle of the touch plate):


White (shortly) Switched on. When operated
Red flashing fast Hardware error

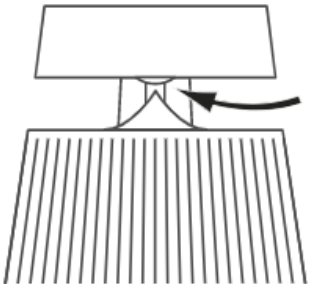

Lens LED (in the middle, under the touch plate):


White flashing slowly Starting up
White solid Connected to network, ready for use
Blue flashing fast Bluetooth pairing ongoing
Blue shortly Bluetooth connection successful
Red shortly Bluetooth connection unsuccessful
Blue solid When not configured to network and not in configuration mode
Amber flashing fast Ready for network setup. Soft AP / WAC mode
Amber flashing slowly Connecting to a network
Amber solid Wireless connection of medium quality
Red solid Wireless connection of poor quality
Red flashing fast Failed to connect to a wireless network


Status LED and lens LED simultaneously

Red, one flash Factory reset
Red flashing slowly Updating software
