Pairing, network status and factory reset

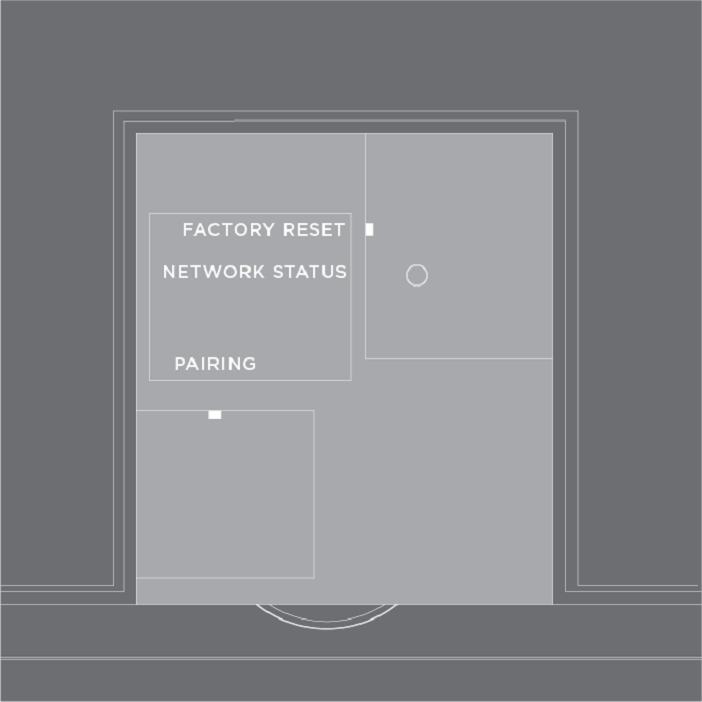

On the back of the right speaker box of the Soundcenter, available when it is in TV mode, you find a button for pairing and for factory reset.


When you press and hold the PAIRING button 1.5 seconds, placed at the bottom of the back of the right speaker box, you open the television for pairing with remote control. To cancel pairing mode, press the button again.

THE FACTORY RESET button is for service use. Only the Soundcenter will be reset to factory settings. This will remove all settings you have made and return to the default factory settings. This includes any wireless connections such as wireless network and remote control pairing.
Your Beovision Harmony will automatically be switched to standby and then power on when the factory reset procedure has finished.

The NETWORK STATUS indicator light beneath the FACTORY RESET button gives you a status of pairing and the network connection:

White (solid)

Connected to a network.

White (pulsing)

Booting

White (flashing)

Factory default reset.

Orange (solid)

Connected to a wireless network, the signal strength is low.

Orange (flashing)

Network lost, not found or error.

Orange (pulsing)

Connecting to a wireless network.

Red (solid shortly)

The pairing did not succeed. Try again, if the problem persists, contact your retailer.

Red (flashing slowly)

Software is being updated.

Blue (solid)

The wireless network has not been set up, and there is no wired network connection.

Blue (solid shortly)

Pairing succeeded.

Blue (flashing)

The Beovision Harmony is open for pairing.
