Connect products

1. Connect the cable to the appropriate socket on the digital product.
2. Run the cable to an HDMI IN socket on the Soundcenter. It is recommended to use one of the HDMI A-D sockets to be able to operate the source with your Bang & Olufsen remote control.
3. To enable operation of the digital product with your Bang & Olufsen remote control, connect an IR-transmitter to one of the PUC sockets and attach it to the IR-receiver of the digital product. Find more information about IR-transmitters under 'IR-transmitters' in this article.
4. Turn on the digital product to activate the device setup wizard.
5. Follow on-screen instructions to configure the source.

1. Using the appropriate type of cable, connect one end to the HDMI output socket on your computer, and the other end to an HDMI IN (HDMI A-D) socket on the Soundcenter.
2. Follow on-screen instructions to configure the source.

You can connect one analogue audio source. To configure products connected to the Beovision Harmony, see the article Set up connected products.

Disconnect all systems from the mains before you connect additional products.

1. Connect the cable to the appropriate socket on the product you wish to connect.
2. Run the cable to the LINE-IN socket on the television.
3. Reconnect the television and the connected products to the mains.

Different adaptors and possibly also cables are needed. Cables and adaptors are available from your Bang & Olufsen retailer.

IR-transmitters

To operate non-Bang & Olufsen products with a Beoremote One, attach a Bang & Olufsen IR-transmitter on your non-Bang & Olufsen product and then connect it to one of the sockets marked PUC on the connection panel. Attach the transmitter near the IR-receiver on the connected product to ensure remote control operation. Before attaching the transmitter permanently, check that you can operate the product menus on the TV screen using BeoRemote One.

When you set up the transmitter to a selected PUC socket in the Sources menu found under Sound & BeoLink... in the Bang & Olufsen TV App, the settings for the IR-transmitter can be made.
However, it is possible to perform a manual setup of the socket if alternative settings are required.

For an extra PUC cable, contact your Bang & Olufsen retailer.

For information about download of Peripheral Unit Controller (PUC) tables for set-top boxes, see the article Set up connected products.

Speakers

You can connect up to eight wired speakers and subwoofers to the television using Power Link cables.

In addition, you can connect up to eight speakers wirelessly, including subwoofers. For more information about setting up wireless speakers, see the article Sound settings.

Disconnect all systems from the mains before you connect additional products.

Depending on the type of speakers you connect to the television, different cables and maybe also adaptors are needed. Cables and adaptors are available from your Bang & Olufsen retailer.

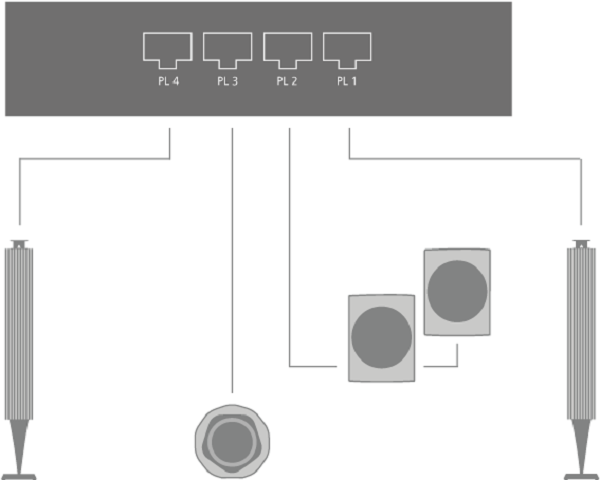

The illustration shows an example of a speaker setup with two front speakers, two daisy-chained rear speakers and a subwoofer.

Connect speakers...

1. Connect a Power Link cable to the appropriate socket on the speakers you wish to connect to the Soundcenter.*
2. Run the cables to available sockets marked PL 1–4 on the television.
3. Connect a Power Link cable to the appropriate sockets on a subwoofer.
4. Run the cable to an available socket marked PL 1–4 on the television.
5. Reconnect the television and the connected speakers to the mains.

*Remember to set the switch on the speaker for left and right position on the speakers depending on whether your speaker is positioned on the left or right of your listening position.

If you want to connect two speakers to one PL socket on the Soundcenter and it is not possible to loop the cable between the speakers, an extra splitter is needed, contact your Bang & Olufsen retailer for more information.

Next: Operate connected products
