In order to use Digital Power Link (DPL) with Beosound Premiere, the speaker(s) must be:
- based on the Mozart Platform™
- added to your Bang & Olufsen account
- connected to your network
- updated to software version 4.1.1 or higher.
Beosound Premiere supports connecting up to 4 speakers using DPL.
How do I add speakers to Beosound Premiere?
How do I create a new Listening Position for Beosound Premiere?

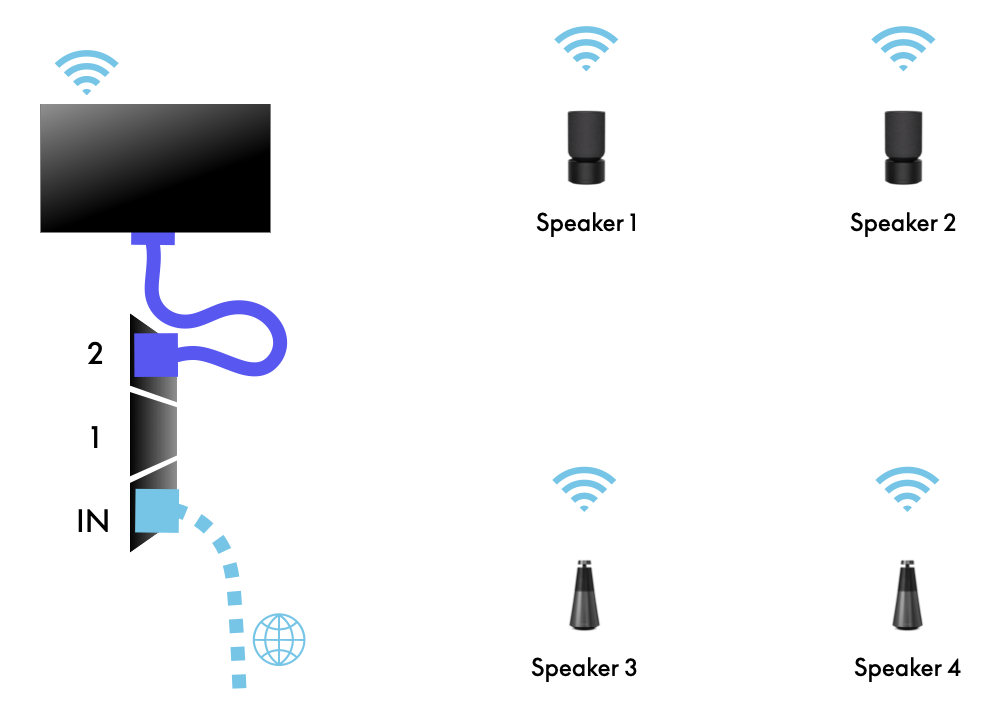

Wireless setup |
|
For a wireless Digital Power Link connection to Beosound Premiere, ensure that the speakers are:
In a fully wireless setup, a wired connection between your router and Beosound Premiere is optional. The Ethernet cable between Beosound Premiere and the screen is only required when integrating with a compatible LG screen. |

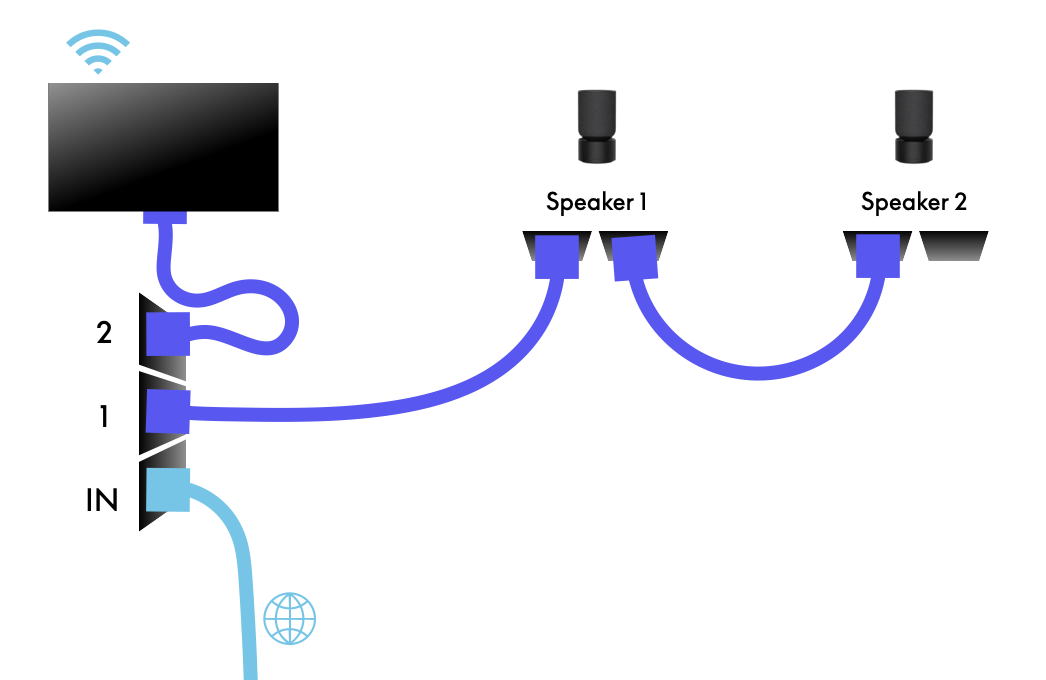

Wired setup |
|
For a wired Digital Power Link connection to Beosound Premiere, ensure that the speakers are:
In a fully wired setup, a wired connection between your router and Beosound Premiere is mandatory. The Ethernet cable between Beosound Premiere and the screen is only required when integrating with a compatible LG screen. Note: Not all speakers have two Ethernet ports. |

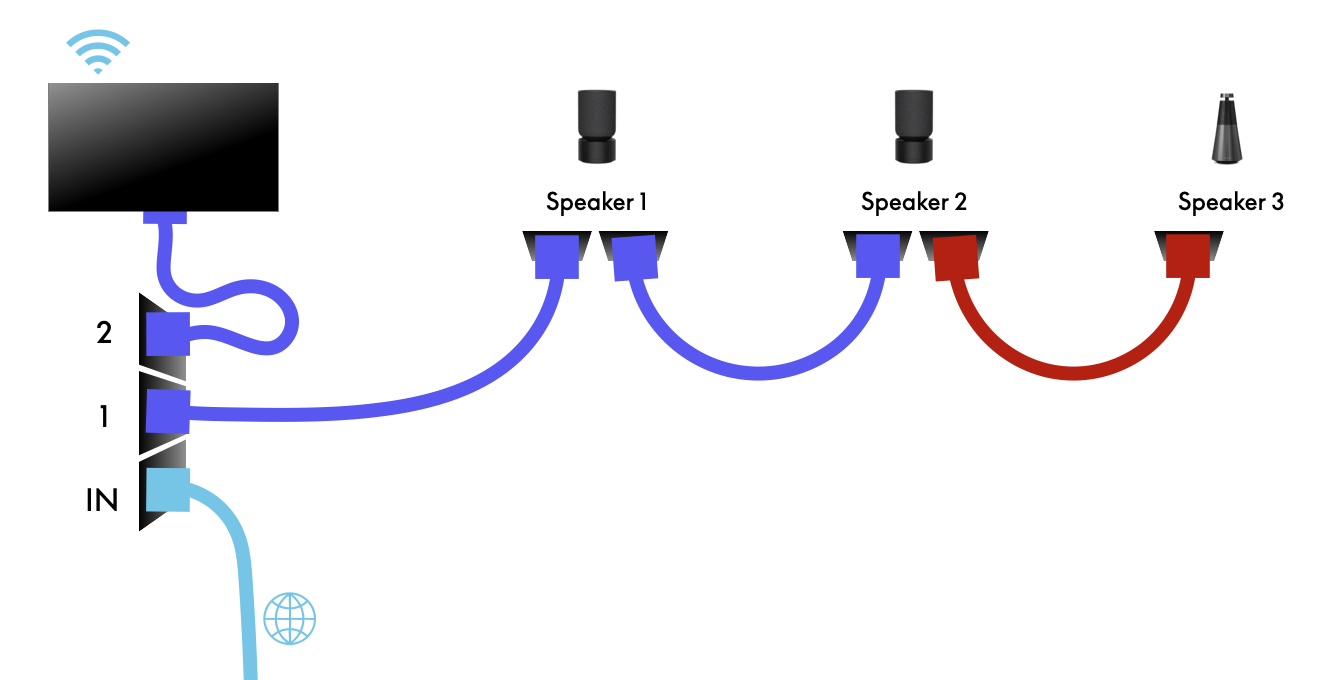

Mixed wired and wireless setup |
|
For a mixed wireless and wired Digital Power Link connection to Beosound Premiere, ensure that the speakers are:
In a mixed wired and wireless setup, a wired connection between your router and Beosound Premiere is mandatory. The Ethernet cable between Beosound Premiere and the screen is only required when integrating with a compatible LG screen.
Note: Not all speakers have two Ethernet ports. |
When wiring Digital Power Link speakers
|
We recommend a maximum of two switches connected in series (per Ethernet port in the Beosound Premiere).
|
