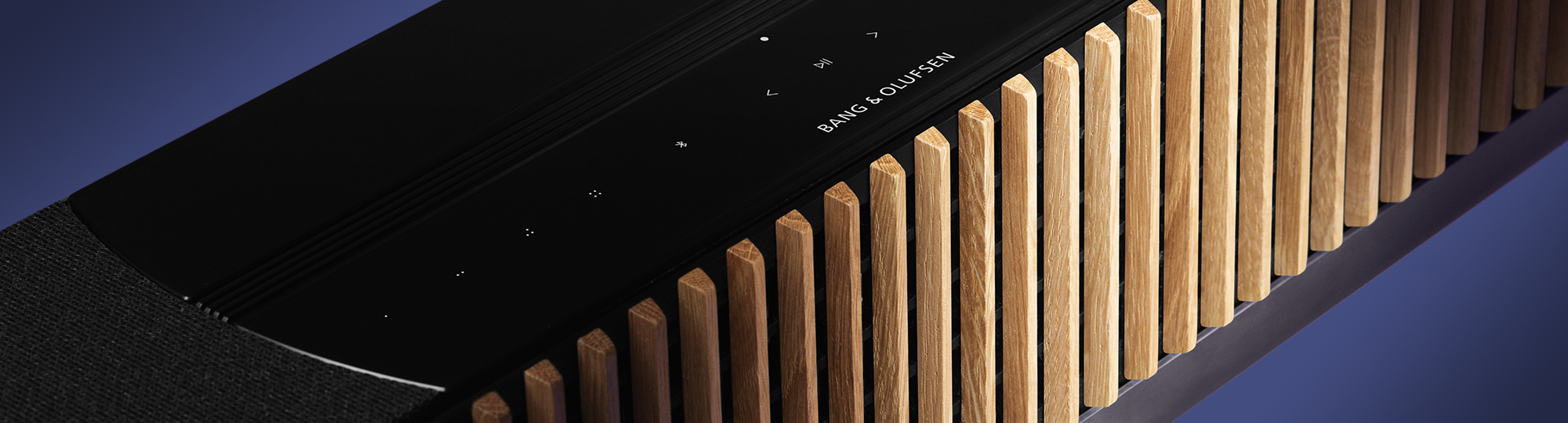

The touch interface buttons on the top and a light indicator placed in the lower part of the front cover inform of the status of the Beosound/Beovision Theatre.
Power | |||
| Play/Pause button | Front LED | Other LEDs | |
| Starting up | Flashing white | Flashing white | |
| Switched on (proximity activated) | Solid white | If TV screen turned off: Solid white | Solid white |
| Switched on (proximity not activated) | Dimmed solid white | If TV screen turned off: Solid white | Dimmed solid white |
| Standby (proximity activated) | Solid white | Dimmed solid white | |
| Standby (proximity not activated) | Dimmed solid white | ||
Bluetooth | |||
| Play/Pause button | Front LED | Bluetooth button | |
| Bluetooth connection successful | Solid blue, 2 sec. | ||
| Bluetooth pairing mode | Pulsing blue | Pulsing blue | Pulsing blue |
Network | |||
| Play/Pause button | Front LED | Other LEDs | |
| Wi-Fi/first-time setup | Flashing orange | Flashing orange | |
| Connecting to network | Pulsing orange | Pulsing orange | |
| No network connection | Solid orange | Solid orange | |
Microphones | |||
| Play/Pause button | Front LED | Microphone button | |
| Microphone mute enabled on front | Off | ||
| Microphone mute disabled on front | Solid white | ||
| Microphone mute activated on touch interface | Solid red | ||
| Microphone mute disabled on touch interface | Solid white | ||
| RoomSense calibration in progress | Flashing white quickly | Flashing white quickly | |
Software update | |||
| Play/Pause button | Front LED | Other LEDs | |
| Software updating | Pulsing green | Pulsing green | |
Error | |||
| Play/Pause button | Front LED | Other LEDs | |
| Hardware error | Solid red | Solid red | |
| Overheating* | Flashing red | Flashing red | |
*Allow Beosound/Beovision Theatre to cool down
