Follow the steps below to set up your Beoplay S8

1. 1

   Set up Beoplay S8

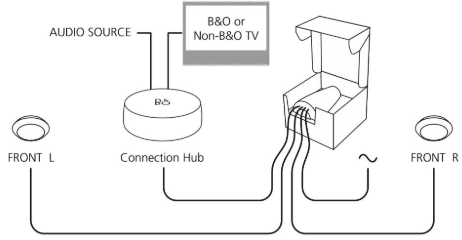

   • Beoplay S8 can be connected to the Connection Hub (illustrated above) or directly to the audio source/TV.
2.  2

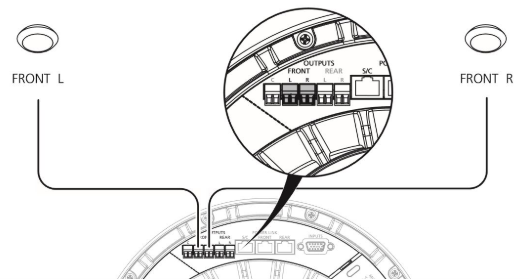

   Connect satellites and subwoofer

   • Connect the cables from each satellite to the subwoofer
   • Connect the cables from the subwoofer to the Connection Hub
3.  3

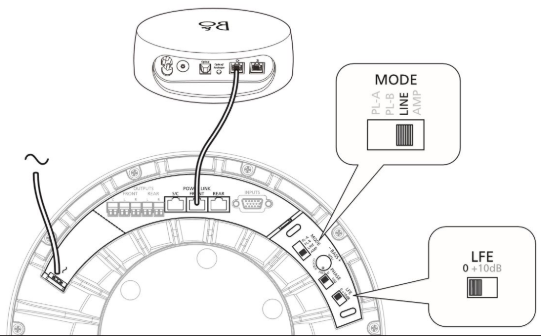

   Set MODE switch

   • For the Connection Hub, make sure to set the MODE switch to "LINE".
   • Details for other connection types are available in the user guide.
